Triangular bending fence

Features: Designed with excellent corrosion resistance, this guardrail ensures durability in various environments. It is quick and easy to install, offering a cost-effective solution with high strength and rigidity. Its attractive appearance and wide field of view make it not only functional but also visually appealing, ideal for both safety and aesthetics.

Surface treatment: electro-galvanized, hot-dip galva

Product Details

Triangular bending fence Description

The Triangular Bending Fence is a modern and durable security fencing solution, widely used for residential areas, industrial zones, gardens, parks, schools, and public facilities. Made from high-quality low-carbon steel wire and treated with galvanized or PVC coating, it offers excellent corrosion resistance, high strength, and long service life.
Its unique V-shaped triangular bending design not only enhances rigidity and impact resistance but also provides a stylish and modern appearance. Easy to install and cost-effective, this fence ensures both security and aesthetics, making it an ideal choice for safety isolation and property protection.

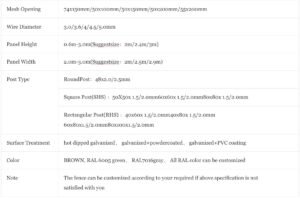

Product Specification

Dip wire diameter:3.6mm
Aperture: 74mm X 150mm
Column size: 48mm X 2.5mm
Piece of Mesh：1.5m X 2m
Can be customized according to drawings

Structure:

welded with high-strength cold-drawn wire and low-carbon steel wire and then hydroformed, fixed with link accessories and steel pipe pillars

Uses:

The fence is widely used in solar photovoltaic projects, railway enclosures, residential areas, field boundaries, and development zone isolation. It is also commonly applied in municipal green spaces, unit green belts, ports, parks, and garden flower beds. Serving both as a protective barrier and a decorative element, it ensures safety while enhancing the overall landscape.

Triangular bending fence Installation Procedure

The uppermost hole in the ground pile and the lowermost hole in the column coincide and are bolted together. Pile pipe exposed to the ground 130mm.The hole at the bottom of the pillar pipe and the first hole of the pile pipe overlap with L- type bolt connection.

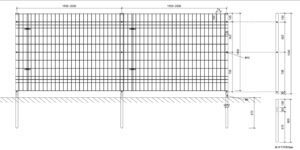

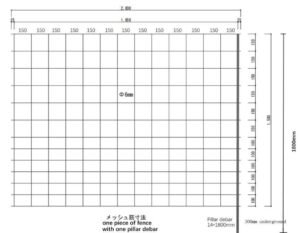

1450mm Fence Drawing

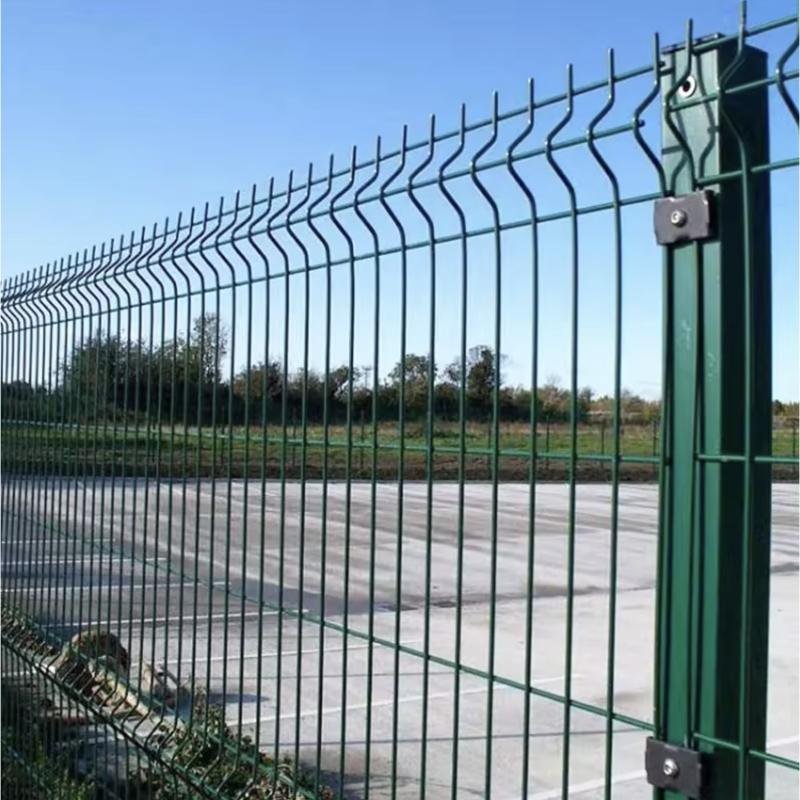

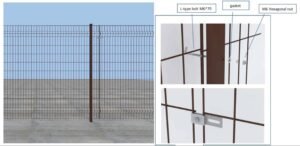

Pillar Pipe And Mesh Connection

As shown in the figure, please tighten the L-type cross line through the post and tighten it with a nut. Please be careful not to over-tighten the nut during construction, so as not to deform the L- type bolt and dislodge the mesh

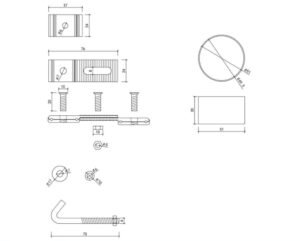

Tilting section connector

After adjusting the tilt angle of the mesh, connect the two ends of the mesh with connectors and tighten them with nuts to fix the position, if you need to cut the mesh, please apply anti-rust coating in the cutting part.
